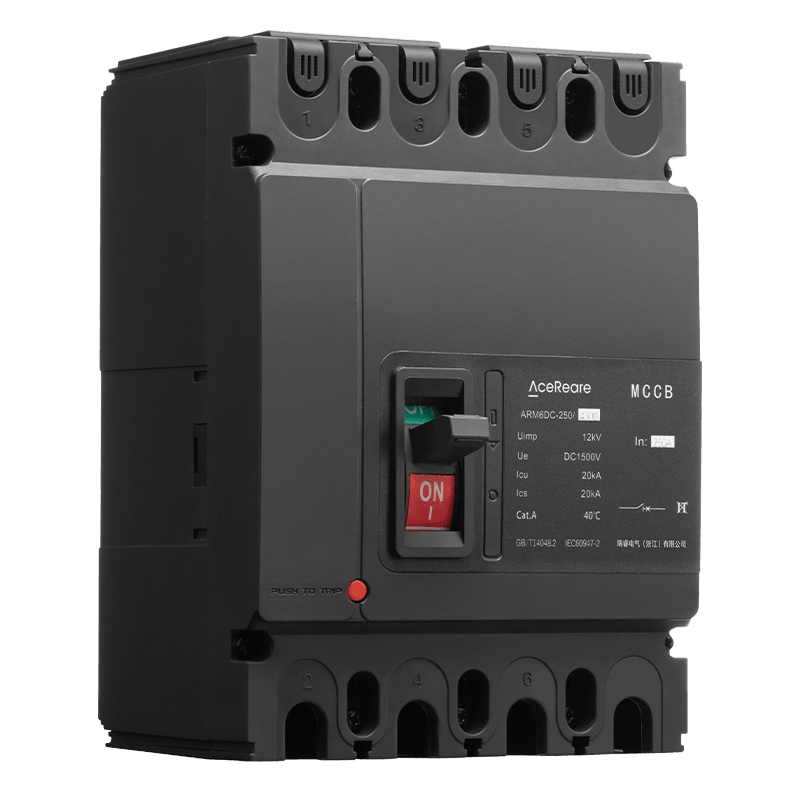

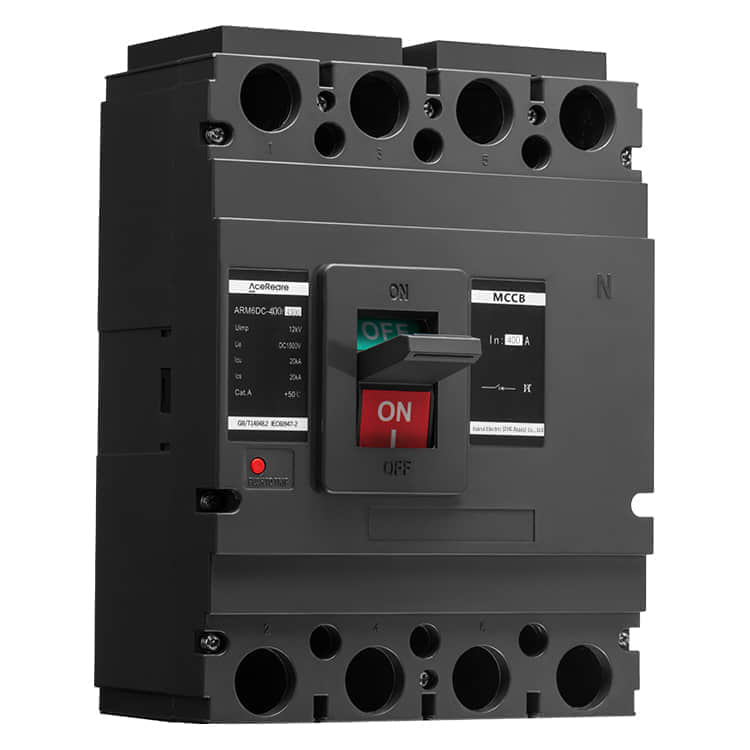

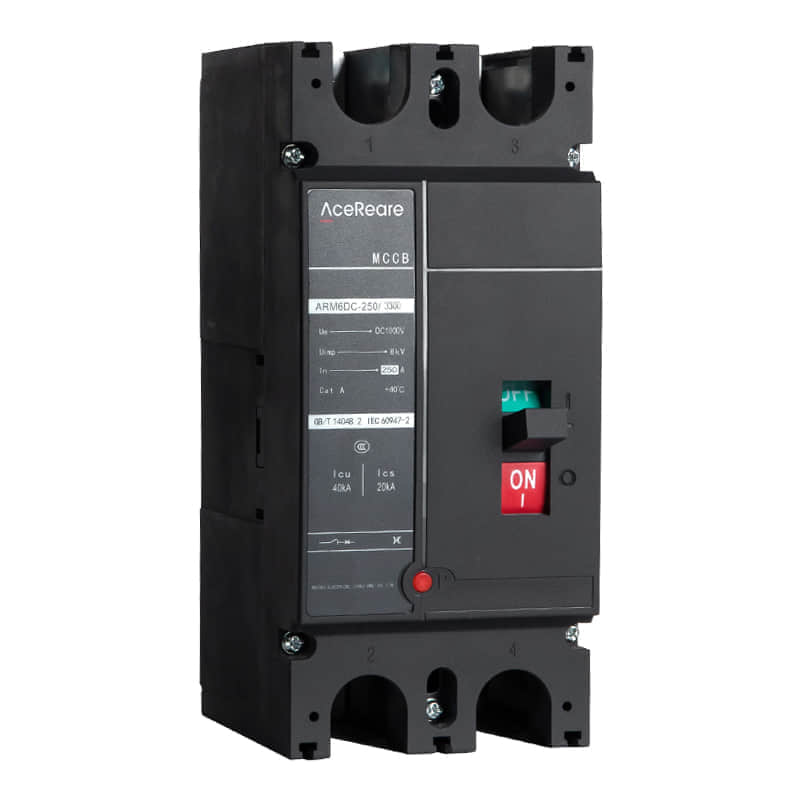

In the realm of renewable energy, photovoltaic (PV) systems have gained immense popularity due to their ability to harness solar energy and convert it into electricity. However, the efficient and safe operation of these systems relies heavily on the use of Moulded Case Circuit Breakers (MCCB), which serve as a crucial component in circuit protection. MCCBs play a pivotal role in safeguarding PV systems from potential hazards such as overcurrent, short circuits, and overloads.
MCCBs are specifically designed to provide robust protection in low-voltage electrical distribution systems. Their molded case construction offers excellent insulation and mechanical strength, making them suitable for a wide range of applications, including PV systems. The breakers are equipped with thermal and magnetic trip mechanisms that quickly respond to abnormal conditions, effectively disconnecting the faulty circuit to prevent damage to equipment and potential hazards.
In PV systems, MCCBs are typically installed at various points within the electrical distribution network. They monitor the flow of electricity and are programmed to trip when certain thresholds are exceeded. For instance, if the current in a particular circuit exceeds the MCCB’s rated value, the magnetic trip mechanism is activated, causing the contacts to separate and interrupt the circuit. Similarly, if a short circuit occurs, the breaker’s high-speed tripping mechanism ensures rapid disconnection, minimizing the potential for damage. The selection of appropriate MCCBs for PV systems is crucial. Factors such as the rated current, voltage, and breaking capacity must be carefully considered to ensure compatibility with the system’s requirements. Additionally, the breaker’s short-circuit capacity should be sufficient to handle the maximum fault current that may occur in the PV system.
